Código: CS0011
Fabricante: Comar System
Mercados:

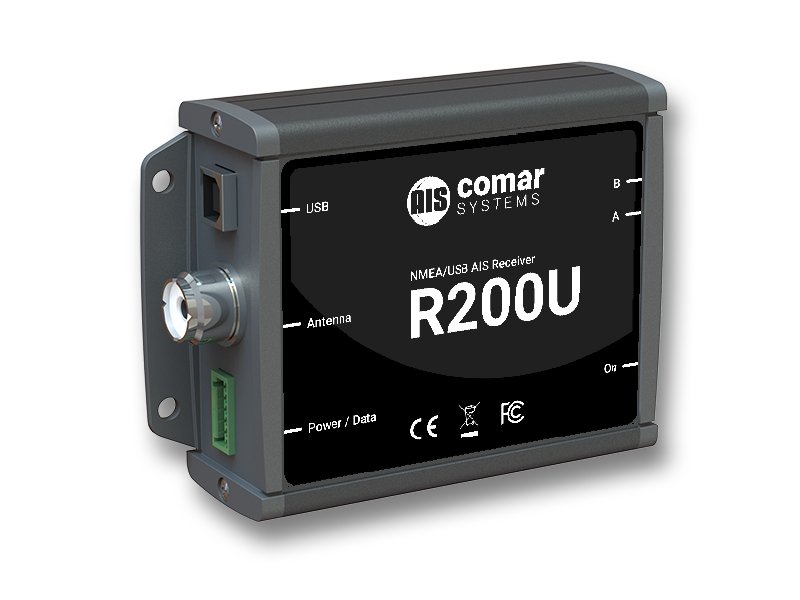

OVERVIEW The R200U is a high performance, dual channel AIS receiver, with outputs for both NMEA 0183 and USB. The R200U reads and decodes all AIS messages that are specified and transmitted by AIS Class A and Class B transponders, AIS SARTs and Aids to Navigation. The AIS targets together with all the static and dynamic information received can be displayed on any AIS compatible Chart Plotter or PC navigation program. The unit can be operated in various modes to suit your application. If connected solely by a USB cable to a PC, the unit is powered by the PC and data is transmitted via the USB cable providing a compact solution. Whilst powered by the USB, NMEA 0183 output is also available from the Power/Data port. NMEA 0183 Input from a GPS can also be connected via the Power / Data port which is multiplexed with the AIS data to provide position information to the PC. Connecting the unit to external 12/24VDC will automatically power the device from the boat?s batteries and provide both USB and NMEA 0183 data. APPLICATIONS ? A low cost method of monitoring the position, speed and heading of other vessels within VHF range ? Reception from both Class A and Class B vessels, AIS SARTS plus Aids to Navigation (AtoN) ? Compact design and simple installation
