Código: MI00141
Fabricante: Mid Continent
Mercados:

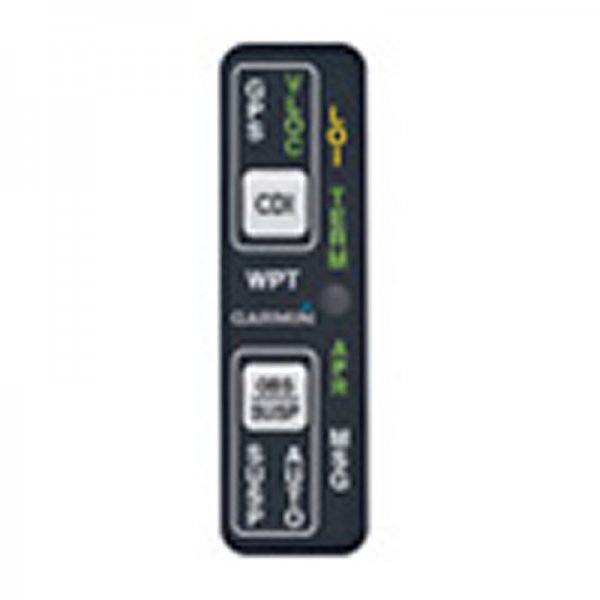

MD41-1515 Model Number: Annunciation Control Unit 28V, Vertical, 5V lighting Features *Compatible with Garmin GTN 6XX/7XX WAAS Navigators *Incudes CDI and suspend mode switching, independent of OBS per new GTN requirements *Compact, self-contained GPS annunciation control unit *Automatic-dimming and daylight readable LED lighting *Single cutout and locking D-subminiature connector reduces installation costs *Quality Mil-Spec connector included *TSO-C129 certified *Qualified to RTCA DO-160 environmental specs *Designed and built in Wichita, Kansas, USA *One-year limited warranty Specifications Orientation: Vertical Power Input: 28VDC Lighting Input: 5VDC Power Requirement: .20 A max Dimensions: .80?H x 2.73?W x 3.20?D Weight: .26 lb. Mating Connector: Positronic RD25F10JVL0 or equivalent (MCI P/N 7014517) Instrument Panel Mounting:: Rear mount Certification: FAA TSO-C129 Environmental Qualification: RTCA DO-160
