Código: MD0005
Fabricante: Marine Data
Mercados:

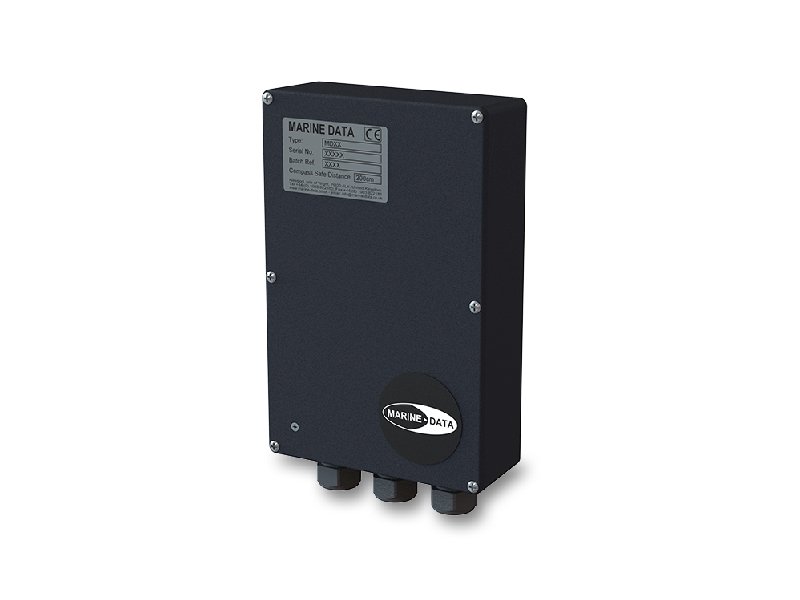

The MD36/8 is a solid-state digital NMEA to analogue STEP (S-Type) Interface for applications where there is a need for low power retransmission of digital NMEA heading data to legacy STEP equipment. It converts a NMEA 0183 (IEC61162-1) compliant digital transmission to a DC STEP (S Type) transmission at 24 V, 35 V or 50 V dc to within 1/6° with no errors. Supplied for bulkhead mounting as standard, the MD36/8 offers a compact NMEA to STEP (S-Type) Interface solution for locations where available space is limited. Constructed in a robust die-cast aluminium enclosure and finished in RAL9005 Jet Black fine texture powder coat paint, the MD36/8 is designed to complement existing marine navigation equipment. The MD36/8 STEP (S-Type) to NMEA Interface from Marine Data, easy to install and simple to maintain. APPLICATIONS ? The MD36/8 is suitable for converting from digital NMEA 0183 (IEC61162-1) transmission format to any STEP (S-Type) transmission format. This is especially useful for retro-fitting legacy systems with modern equipment requiring a digital transmission of ships heading ? The MD36/8 forms an integral part of Marine Data Heading Repeaters supplied for use with STEP (S-Type) transmission systems RELATED PRODUCTS ? The complete range of Marine Data Heading Repeaters
