For ultimate situational awareness, the GMX 200 multi-function display (MFD) has a viewing area almost 20% larger than other panel-mounted MFDs and comes standard with FliteCharts? and SafeTaxi?. GMX 200 is available in Standard, Traffic, Radar/TAWS and Radar/Traffic for more choices in the cockpit.

Get the Big Picture
GMX 200 has a sunlight-readable, high-resolution, 640 x 480 display. In addition to its 6.5" AMLCD display, its enhanced backlighting dramatically improves color and contrast, making chart depictions and images easier to read in any light.

Reduce Your Workload
GMX 200 has multiple functions and features that make navigation simpler:

Displays aircraft's position relative to terrain, obstructions, weather, airways, navaids and restricted airspace.
Has several charting options that let you add or remove details with the press of a soft key.
Rotary knob allows for quicker map scale changes and entry of data.
Front-loading SD? card slot to easily update charts.
Fits in same panel space as the MX20 and includes more serial ports for added sensor capacity.
Enhanced Situational Awareness
GMX 200 is preloaded with high resolution terrain and hydrography data for the entire world, giving you unmatched presentation even at lower zoom scales. Cities, roads, rivers and lakes have been added to the basemap for improved situational awareness. An aviation database featuring Jeppesen? NavData? draws airports, airways, navaids, airspace and more. Map scales range from 1/4 of a mile to 2,500 miles. A unique split screen mode allows you to simultaneously view 2 charting options along with the vertical profile for the elevation of the terrain along the route of flight.

Optional ChartView? further enhances situational awareness in airport and terminal areas. Surface diagrams are automatically displayed on departure and arrival to assist with taxiing unfamiliar airports or in conditions of poor visibility. Overlay your aircraft's position on the electronic approach chart to provide a visual crosscheck. All of the ChartView plates are seamlessly stitched into the custom mapping options.

FliteCharts & SafeTaxi

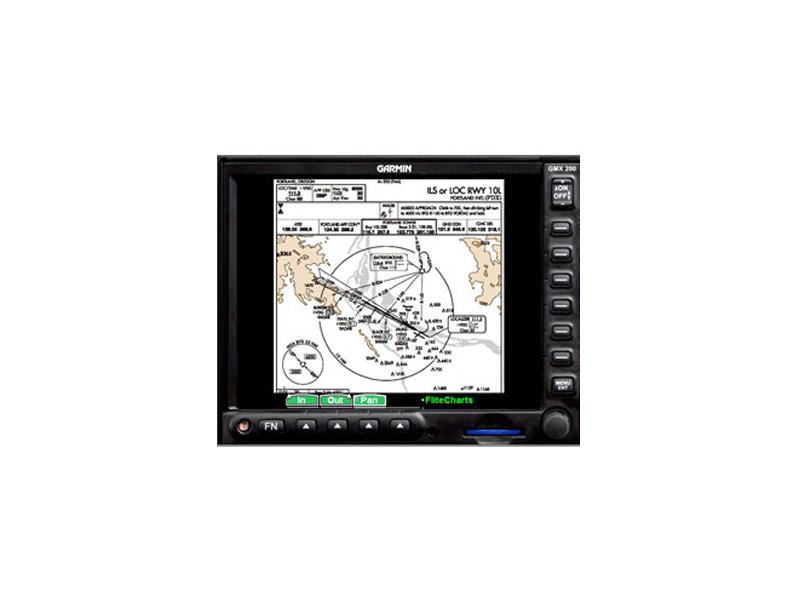

Quickly find and view all AeroNav Departure Procedures (DP), Standard Terminal Arrival Routes (STARs), approach charts and airport diagrams with FliteCharts. With FliteCharts on your GMX 200, access all U.S. approach plates currently published by NACO, which includes 14,000 approach plates at more than 2,900 airports. FliteCharts are not geo-referenced. We offer updates every 28 days.

Navigate unfamiliar airports with confidence using SafeTaxi. It displays runways, taxiways, intersections, airport Hot Spots, FBOs and hangars while simultaneously depicting the aircraft?s exact location and movement on the field. SafeTaxi includes U.S., Europe and Canadian airport diagrams and seamlessly integrates with the GMX 200?s existing basemap. We offer updates for SafeTaxi every 56 days.

Optional Satellite Weather
Get XM WX Satellite Weather on the GMX 200 when you add GDL 69. Receive and display graphical weather including NEXRAD, METARs, TAFs, TFRs, winds aloft, echo tops, precipitation type at the surface, lightning strikes, storm-cell data, AIRMETs and SIGMETs ? regardless of altitude. Combine animated NEXRAD images with the maximum zoom range of 2500nm, and you have a nationwide view of weather presented on 1 screen. With the GDL 69A, you'll also be able to get the more than 150 channels of SiriusXM Satellite Radio in your aircraft (subscription required).

Choose Your Version
GMX 200 comes in Standard, Traffic, Radar/TAWS and Radar/Traffic versions.

Standard supports interface to the GDL 90 ADS-B transceiver.
Traffic supports interfaces to TIS transponders, select TCAS 1 and TAS systems, and the GDL 90 ADS-B transceiver.
Radar/TAWS supports interfaces to the GWX 68 radar, other onboard radar systems, select TAWS sensors, and the GDL 90 ADS-B transceiver.
Radar/Traffic supports interfaces for traffic, GWX 68 radar, select TAWS sensors and the GDL 90 ADS-B transceiver.
GMX 200 may be interfaced with our 400/500 series, GNS 480?, GDL 69/69A, GTX 330/33?, GDL 90?, GWX 68, as well as other manufacturers' GPS navigation equipment.

Standard version is not compatible with Traffic Systems, Onboard Radar Systems or TAWS. Traffic version is not compatible with Onboard Radar Systems or TAWS. Radar/TAWS version is compatible with Onboard Radar Systems and TAWs. Contact Product Support for a list of compatible traffic and onboard radar systems.


Physical & Performance
Physical dimensions 6.25"W x 5.00"H x 8"D (15.9 x 12.7 x 20.3 cm)
Display size, WxH 4.0"W x 3.0"H (10.2 x 7.6 cm); 6.5" diag (16.5 cm)
Display resolution, WxH 640 x 480 pixels
Display type sunlight-readable color AMLCD display with auto/manual dimming
Weight 4.3 lb (2 kg) GMX 200 standard; 4.6 lb (2.1 kg) GMX 200 Traffic, Radar and Radar/Traffic)
Voltage range 10-40
Maps & Memory
Basemap
Databases
Navigation database (includes Jeppesen? data)
GPS/Nav/Comm Features
Front-loading datacards (conveniently update database information)
Aviation Portable Features
Moving map
Additional
Additional XM WX Weather & Radio for US Only
