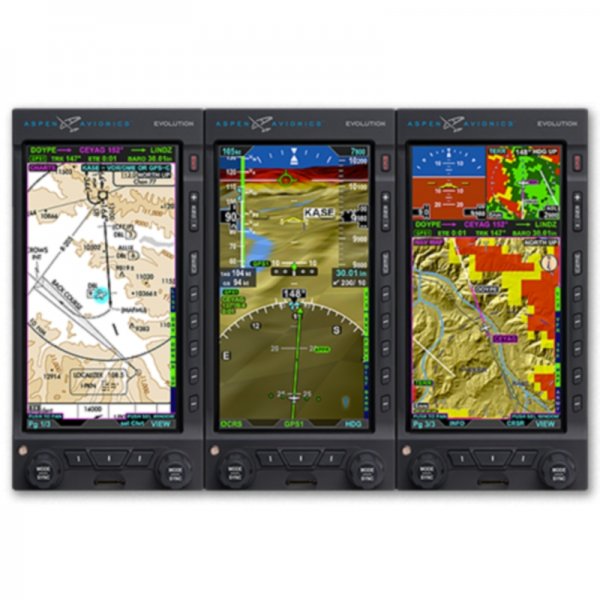

The Evolution 2500H combines the powerful 1000H Pro PFD (Primary Flight Display), the 1000H MFD (Multi-function Flight Display), and the 500H MFD to deliver Aspen?s total glass cockpit solution. The 1000H Pro PFD and 1000H MFD provide the safety and confidence of total PFD redundancy. The 500H MFD expands display area to put more flight data where you want it - the way you want it. Aspen makes the total glass cockpit experience for helicopters both easy-to-use and affordable with patent-pending retrofit technology and superior compatibility for substantially lower installation costs and total cost of ownership.

The 1000H Pro PFD provides professional-grade EFIS primary flight instruments, a full-featured electronic HSI, and moving maps. The 1000H MFD doubles your panel?s display area and delivers full redundancy of critical systems and sensors. The 500H MFD rounds out the package to deliver the largest display area and most flexible glass panel on the market. All that display area also allows you to view your approach chart and moving map at the same time - cross check your position with ease!
The 1000H MFD incorporates the exact same hardware and software as the PFD, so these units give you two of everything, not just two displays: dual independent AHRS, Air Data Computers, compass systems, HSIs, and more.

With Aspen?s exclusive full PFD redundancy, if your PFD fails you simply press the 1000H MFD?s REV button and it becomes the PFD - converting into an identical backup right in your primary instrument scan. This identical PFD backup means less stress and potential confusion in a pressure situation. No other helicopter glass cockpit system gives you this level of redundancy and confidence at any price!

The Evolution 2500H Package delivers value pricing compared to installing the 1000H Pro PFD, 1000H MFD, and 500H MFD separately. Evolution Flight Displays are fully upgradable, so you can add comprehensive hazard awareness capabilities and other new features via software upgrades, without removing displays from your panel.

Features
*Three Independent LCD Displays - twice the MFD display area for enhanced situational awareness
*Redundant Solid-State Attitude Heading Reference Systems with Independent Gyro, Accelerometer and Magnetic Sensors
*Redundant Air Data Computers with Independent Airspeed & Altitude Pressure Transducers
*Redundant Emergency Batteries (30 Minutes Runtime or 2 Hours with Optional External Battery)
*Redundant Emergency GPS Receivers (optional)
*Dual Sixpack Displays
*Dual HSIs
*Dual GPSS Computers
*Evolution Synthetic Vision (optional)
*GPS flight plan map views, choose from 360º or Arc view
*Electronic Attitude Director Indicator (ADI) with airspeed and altitude tapes
*Approach mode with lateral and vertical deviation indicators and approach minimums alert
Integral GPS Steering
*Altitude alerter
*Dual GPS and dual VHF nav support
*Autopilot & flight director integration
*Display of real-time winds aloft, OAT, TAS, and ground speed
*Traffic and weather overlays (optional)
*Moving map that displays GPS flight plan legs, curved flight paths, waypoints, navaids and airports
*Brilliant, direct sunlight-readable, 6-inch 760x400 TFT active matrix LCD display (140 pixels/inch)

Specifications
General Specifications (per EFD):
Overall Dimensions 3.50? W x 7.00?H x 4.15?D
Weight 2.9 lbs. with mounting bracket
Display Type 6.0? Diagonal TFT Active Matrix LCD
Display Resolution 400x760
Display Backlight High Intensity White LED
Display Colors 32,768

Operational Specifications:
Operating Temp -20°C to +55°C
Storage Temp -55°C to +85°C
Max Operating Altitude (unpress.) 35,000 ft.
Cooling Integral Fan
Max Humidity 95% at 50°C
Input Voltage +8 to +32 Volts DC
Max Current 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc

I/O Specifications:
ARINC 429 Inputs 5 Low Speed
ARINC 429 Outputs 1 Low Speed
RS-232 Inputs 5
RS-232 Outputs 3
Pitot / Static Quick Connect

Certification Specifications:
FAA and EASA Technical Standard Orders
TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113

Software
RTCA DO-178B Level C

Environmental
RTCA DO-160E

Categories
See Environmental Qualification Sheet

Engineered for Easy Installation
The Evolution flight displays are an innovative, modular system that slide into the existing 3-inch instrument holes in any instrument panel. A universal bracket provides easy surface mounting. The system can optionally be flush mounted. This unique system dramatically reduces installation time and cost.

The modular Evolution platform allows for easy expansion. The integrated displays mount side-by-side in one, two, and three display configurations for supreme flexibility and upgradability.
